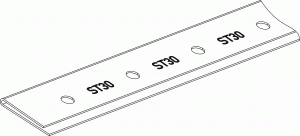

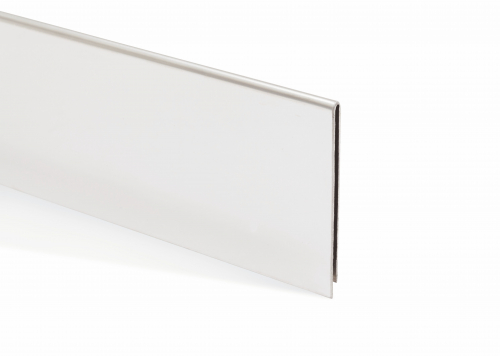

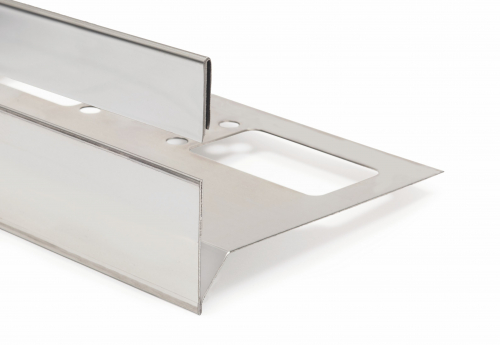

Terrace plug-on profiles stainless steel
Material No. CrNi 1.4404 (V4A), Surface 3D-polished and K220-brushed
| Profile length: | 2.5 m |
| Info: | Clamping profile for variable height adjustment. Areas see table below |
Note: The illustrations of the colors and surfaces may differ from the original.
By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.
| Profile length: | 2.5 m |
| Info: | Clamping profile for variable height adjustment. Areas see table below |
Note: The illustrations of the colors and surfaces may differ from the original.
By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.
Gallery
Product variations

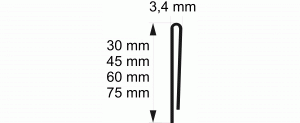

| Surface | Height | Identification | Area for TGP 30 mm | Area for TGP 60 mm | Area for TGPW 30 mm | Area for TGPW 40 mm | Area for TGPW 60 mm |  | |
|---|---|---|---|---|---|---|---|---|---|
| 3D-polished | 30 mm | TAP-E-3D 30/2,5 | 32-45 mm | 62-75 mm | 35-45 mm | 45-55 mm | 62-75 mm |   | |
| 45 mm | TAP-E-3D 45/2,5 | 32-60 mm | 62-90 mm | 52-60 mm | 50-70 mm | 62-90 mm | | ||
| 60 mm | TAP-E-3D 60/2,5 | 42-75 mm | 62-105 mm | 67-75 mm | 67-85 mm | 67-105 mm | | ||
| 75 mm | TAP-E-3D 75/2,5 | 57-90 mm | 62-120 mm | 82-90 mm | 82-100 mm | 82-120 mm | | ||
| |||||||||
| K220-brushed | 30 mm | TAP-E-K220 30/2,5 | 32-45 mm | 62-75 mm | 35-45 mm | 45-55 mm | 62-75 mm | | |
| 45 mm | TAP-E-K220 45/2,5 | 32-60 mm | 62-90 mm | 52-60 mm | 50-70 mm | 62-90 mm | | ||
| 60 mm | TAP-E-K220 60/2,5 | 42-75 mm | 62-105 mm | 67-75 mm | 67-85 mm | 65-105 mm | | ||
| 75 mm | TAP-E-K220 75/2,5 | 57-90 mm | 62-120 mm | 82-90 mm | 82-100 mm | 82-120 mm | |
