LED-U without anchoring leg complete profile
Alumimium anodised, powder coated and PMMA
| Profile length: | 2.5 m + 3 m |

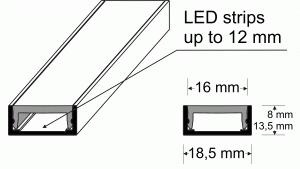

| Info: | Complete profile including LED U-profile (alu) and LED-cover (PMMA). For LED strips up to 12 mm wide. Upon request, every RAL or sanitary colour can be delivered within approx. 2 to 3 weeks. During assembly must be considered that aluminium and PMMA have different expansion coefficient. Based on 20°C: Aluminium 0,25 mm/m PMMA approx. 0,80 mm/m per 10°C of difference in temperature. |
| Order code: | LED profiles can be combined individually with various covers. See LED cover profile designation: LED-AP. |
Material properties Aluminium
Aluminium anodised
Aluminium doesn't sustain high levels of mechanical stress. Extremely high levels of stress can damage the anodised surface. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested. It is important to remove mortar or grout residue immediately from visible surfaces.
Aluminium powder coated
Powder coated profiles are specially suited for walls and should mainly be used there. These profiles are pre-treated (chromated) and have a polyester powder coat. But the surface isn't resistant against scratching and abrasion. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested.
Material properties PMMA Polymethylmethacrylat (Acrylglas)
Polymethylmethacrylat (Acrylglas)
PMMA ist ein transparenter thermoplastischer Kunststoff und hat im Vergleich zu anderen Kunststoffen eine besonders gute Streuwirkung und gleichzeitig einen sichtbar höheren Lichtdurchlass. Die Sichtfläche ist vor chemischer oder mechanischer Beanspruchung zu schützen. Klebereste und Fugenmaterial sofort entfernen und keinesfalls antrocknen lassen.
Note: The illustrations of the colors and surfaces may differ from the original.
By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.
Traffic white matt
Anthracite
Alu silver
Alu silver polished
Alu titan polished
| Profile length: | 2.5 m + 3 m |
| Info: | Complete profile including LED U-profile (alu) and LED-cover (PMMA). For LED strips up to 12 mm wide. Upon request, every RAL or sanitary colour can be delivered within approx. 2 to 3 weeks. During assembly must be considered that aluminium and PMMA have different expansion coefficient. Based on 20°C: Aluminium 0,25 mm/m PMMA approx. 0,80 mm/m per 10°C of difference in temperature. |
| Order code: | LED profiles can be combined individually with various covers. See LED cover profile designation: LED-AP. |
Material properties Aluminium
Aluminium anodised
Aluminium doesn't sustain high levels of mechanical stress. Extremely high levels of stress can damage the anodised surface. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested. It is important to remove mortar or grout residue immediately from visible surfaces.
Aluminium powder coated
Powder coated profiles are specially suited for walls and should mainly be used there. These profiles are pre-treated (chromated) and have a polyester powder coat. But the surface isn't resistant against scratching and abrasion. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested.
Material properties PMMA Polymethylmethacrylat (Acrylglas)
Polymethylmethacrylat (Acrylglas)
PMMA ist ein transparenter thermoplastischer Kunststoff und hat im Vergleich zu anderen Kunststoffen eine besonders gute Streuwirkung und gleichzeitig einen sichtbar höheren Lichtdurchlass. Die Sichtfläche ist vor chemischer oder mechanischer Beanspruchung zu schützen. Klebereste und Fugenmaterial sofort entfernen und keinesfalls antrocknen lassen.
Note: The illustrations of the colors and surfaces may differ from the original.
By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.
Traffic white matt
Anthracite
Alu silver
Alu silver polished
Alu titan polished
Gallery
Product variations
Available
| Surface | Height | Identification |  | |
|---|---|---|---|---|
| Alu silver + cover PMMA-white | 8 mm | LED-UBAP-AS 8-16 |   | |
| Traffic white matt + cover PMMA-white | 8 mm | LED-UBAP-VWM 8-16 | | |
| Anthracite matt + cover PMMA-black | 8 mm | LED-UBAP-AZM 8-16 | | |
| ||||
| Alu silver + cover PMMA-white | 13,5 mm | LED-UBAP-AS 13,5-16 | | |
| Traffic white matt + cover PMMA-white | 13,5 mm | LED-UBAP-VWM 13,5-16 | | |
| Anthracite matt + cover PMMA-black | 13,5 mm | LED-UBAP-AZM 13,5-16 | | |
| Alu silver shiny brushed + cover PMMA-white | 13,5 mm | LED-UBAP-ASGS 13,5-16 | | |
| Alu titan shiny brushed + cover PMMA-white | 13,5 mm | LED-UBAP-ATGS 13,5-16 | |
