Profile length: 2.5 m + 3 m
Info: Complete profile including LED-profile (alu) and LED-cover (PMMA).

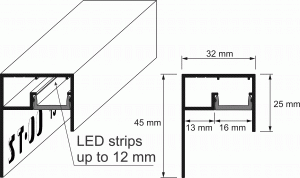

For LED strips up to 12 mm wide. Upon request, every
RAL or sanitary colour can be delivered within approx. 2
to 3 weeks.
During assembly must be considered that aluminium and
PMMA have different expansion coefficient. Based on
20°C:
Aluminium 0,25 mm/m
PMMA approx. 0,80 mm/m per 10°C of difference in
temperature.
Order code: _

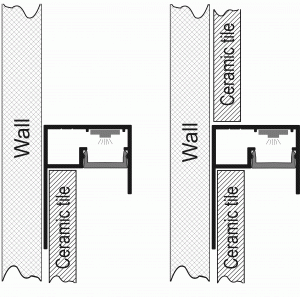

LED-End profile complete (single lighting)
LED-End profile complete (single lighting)
Material properties Aluminium
Aluminium anodised
Aluminium doesn't sustain high levels of mechanical stress. Extremely high levels of stress can damage the anodised surface. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested. It is important to remove mortar or grout residue immediately from visible surfaces.
Aluminium powder coated
Powder coated profiles are specially suited for walls and should mainly be used there. These profiles are pre-treated (chromated) and have a polyester powder coat. But the surface isn't resistant against scratching and abrasion. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested.
Material properties PMMA Polymethylmethacrylat (Acrylglas)
Polymethylmethacrylat (Acrylglas)
PMMA ist ein transparenter thermoplastischer Kunststoff und hat im Vergleich zu anderen Kunststoffen eine besonders gute Streuwirkung und gleichzeitig einen sichtbar höheren Lichtdurchlass. Die Sichtfläche ist vor chemischer oder mechanischer Beanspruchung zu schützen. Klebereste und Fugenmaterial sofort entfernen und keinesfalls antrocknen lassen.

Note: The illustrations of the colors and surfaces may differ from the original.



By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.

Traffic white matt
Anthracite
Alu silver
Profile length: 2.5 m + 3 m
Info: Complete profile including LED-profile (alu) and LED-cover (PMMA).
For LED strips up to 12 mm wide. Upon request, every
RAL or sanitary colour can be delivered within approx. 2
to 3 weeks.
During assembly must be considered that aluminium and
PMMA have different expansion coefficient. Based on
20°C:
Aluminium 0,25 mm/m
PMMA approx. 0,80 mm/m per 10°C of difference in
temperature.
Order code: _
LED-End profile complete (single lighting)
LED-End profile complete (single lighting)
Material properties Aluminium
Aluminium anodised
Aluminium doesn't sustain high levels of mechanical stress. Extremely high levels of stress can damage the anodised surface. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested. It is important to remove mortar or grout residue immediately from visible surfaces.
Aluminium powder coated
Powder coated profiles are specially suited for walls and should mainly be used there. These profiles are pre-treated (chromated) and have a polyester powder coat. But the surface isn't resistant against scratching and abrasion. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested.
Material properties PMMA Polymethylmethacrylat (Acrylglas)
Polymethylmethacrylat (Acrylglas)
PMMA ist ein transparenter thermoplastischer Kunststoff und hat im Vergleich zu anderen Kunststoffen eine besonders gute Streuwirkung und gleichzeitig einen sichtbar höheren Lichtdurchlass. Die Sichtfläche ist vor chemischer oder mechanischer Beanspruchung zu schützen. Klebereste und Fugenmaterial sofort entfernen und keinesfalls antrocknen lassen.

Note: The illustrations of the colors and surfaces may differ from the original.



By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.

Traffic white matt
Anthracite
Alu silver

Product variations

Available
Version Height Identification
Alu silver + cover PMMA-white 13 mm LED-ABAP-AS
Traffic white matt + cover PMMA-white 13 mm LED-ABAP-VWM
Anthracite matt + cover PMMA-black 13 mm LED-ABAP-AZM
Alu silver shiny brushed + cover PMMA-white 13 mm LED-ABAP-ASGS
Alu titan shiny brushed + cover PMMA-white 13 mm LED-ABAP-ATGS
