Profile length: 2.5m + 3m
Info: Complete profile including LED step profile (alu) and LED-cover (PMMA).

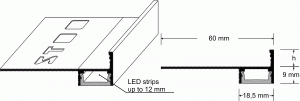

For LED strips up to 12 mm wide.
During assembly must be considered that aluminium and PMMA have different expansion coefficient. Based on 20°C:
Aluminium 0,25 mm/m
PMMA approx. 0,80 mm/m per 10°C of difference in temperature.
LED-step profile
Material properties Aluminium
Aluminium anodised
Aluminium doesn't sustain high levels of mechanical stress. Extremely high levels of stress can damage the anodised surface. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested. It is important to remove mortar or grout residue immediately from visible surfaces.
Material properties PMMA Polymethylmethacrylat (Acrylglas)
Polymethylmethacrylat (Acrylglas)
PMMA ist ein transparenter thermoplastischer Kunststoff und hat im Vergleich zu anderen Kunststoffen eine besonders gute Streuwirkung und gleichzeitig einen sichtbar höheren Lichtdurchlass. Die Sichtfläche ist vor chemischer oder mechanischer Beanspruchung zu schützen. Klebereste und Fugenmaterial sofort entfernen und keinesfalls antrocknen lassen.

Note: The illustrations of the colors and surfaces may differ from the original.



By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.

Alu silver
Profile length: 2.5m + 3m
Info: Complete profile including LED step profile (alu) and LED-cover (PMMA).
For LED strips up to 12 mm wide.
During assembly must be considered that aluminium and PMMA have different expansion coefficient. Based on 20°C:
Aluminium 0,25 mm/m
PMMA approx. 0,80 mm/m per 10°C of difference in temperature.
LED-step profile
Material properties Aluminium
Aluminium anodised
Aluminium doesn't sustain high levels of mechanical stress. Extremely high levels of stress can damage the anodised surface. In environments where high chemical stress is to be expected, the compatibility of this material should first be tested. It is important to remove mortar or grout residue immediately from visible surfaces.
Material properties PMMA Polymethylmethacrylat (Acrylglas)
Polymethylmethacrylat (Acrylglas)
PMMA ist ein transparenter thermoplastischer Kunststoff und hat im Vergleich zu anderen Kunststoffen eine besonders gute Streuwirkung und gleichzeitig einen sichtbar höheren Lichtdurchlass. Die Sichtfläche ist vor chemischer oder mechanischer Beanspruchung zu schützen. Klebereste und Fugenmaterial sofort entfernen und keinesfalls antrocknen lassen.

Note: The illustrations of the colors and surfaces may differ from the original.



By request, any RAL or sanitary color can be delivered in approx. 2-3 weeks for a surcharge. Please note that the colors in the original may differ depending on the monitor. To check the color fastness, we recommend a RAL color fan.

Alu silver

Product variations

Available
Surface Height Identification
Alu silver + cover PMMA-white 9 mm LED-STPRAP-AS 9
11 mm LED-STPRAP-AS 11
Alu silver shiny brushed + cover PMMA-white 9 mm LED-STPRAP-ASGS 9
11 mm LED-STPRAP-ASGS 11
Alu titan shiny brushed + cover PMMA-white 9 mm LED-STPRAP-ATGS 9
11 mm LED-STPRAP-ATGS 11
